Downloads

Comparo HD

We believe our Comparo HD software is really easy to use, but don’t just take our word for it, download Comparo HDX2 along with the example video data we have made available and see for yourself.

v1.02.01.20

Microsoft Windows

44mb

Unzip and then double-click on “Race-Keeper Comparo setup x.xx.xx.xx.exe” to launch installer

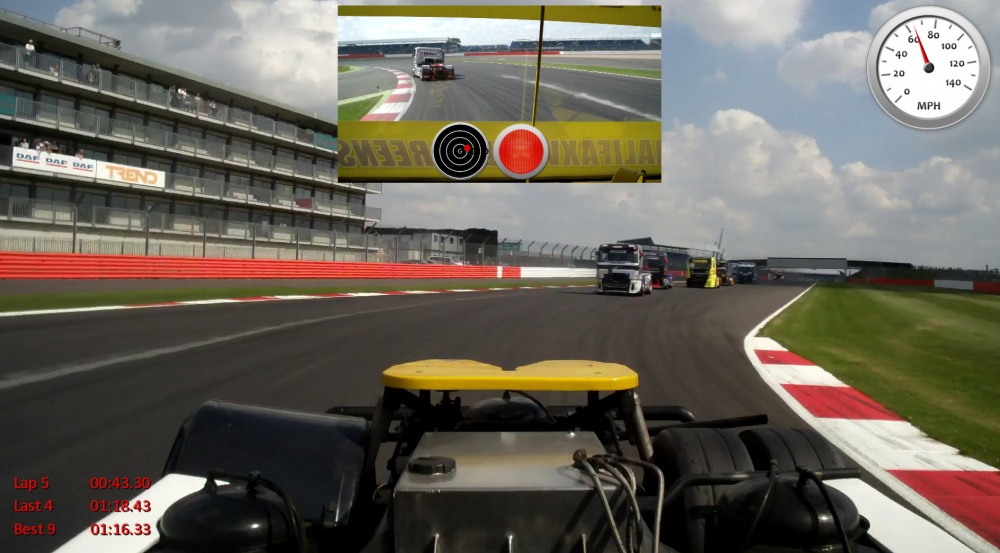

This video is of the Richard Collett Truck Racing team during a BTRA race at Silverstone National circuit (UK). We join the action early in the race, just before everything really kicks off. There are plenty of laps in this outing so you will be able to compare two laps against each other.

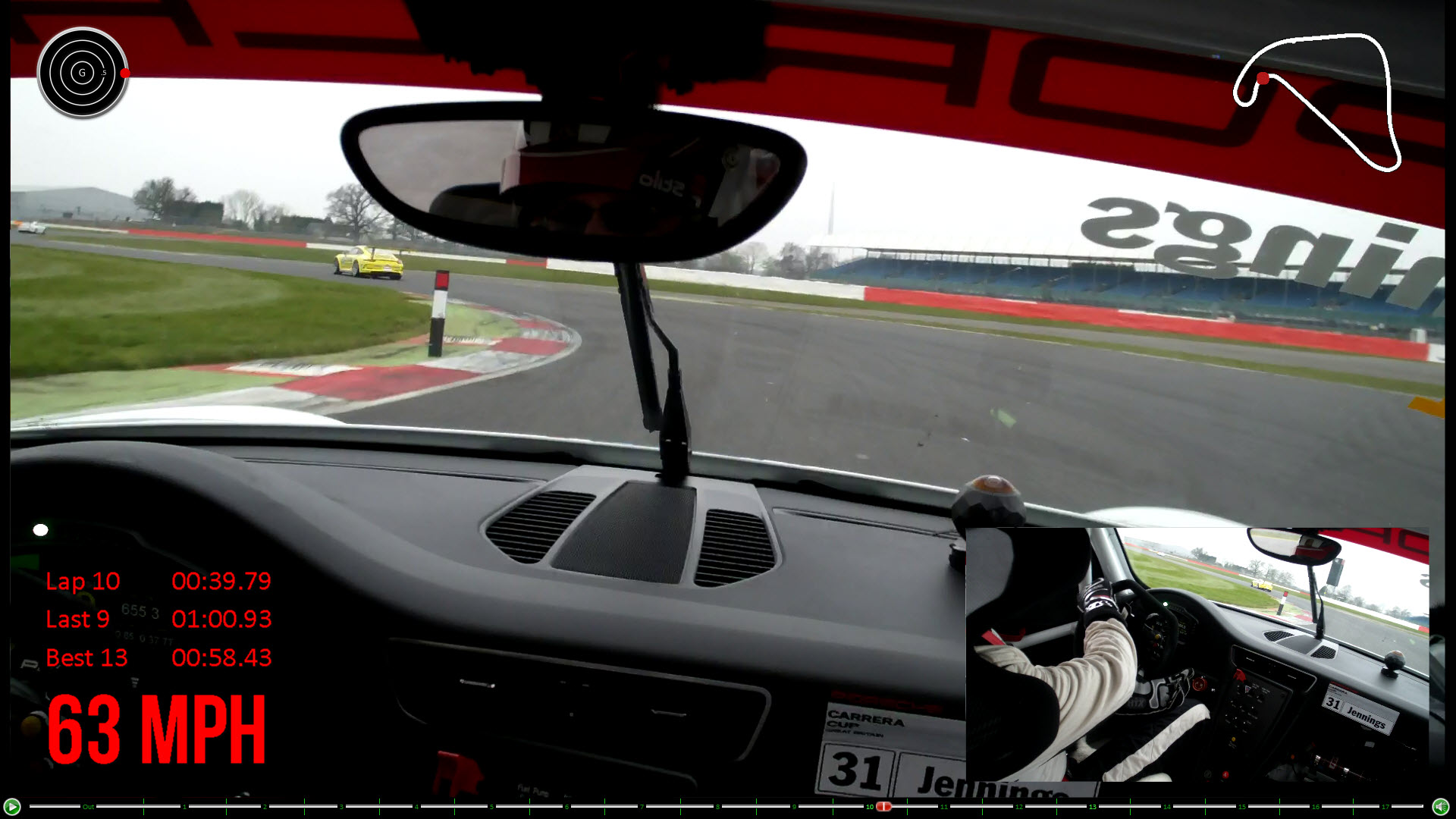

This video is of Shamus Jennings, who drives for the G-CAT Racing team in the Porsche Carrera Cup GB championship, testing at the Silverstone National circuit (UK). There are two laps in this outing so you will be able to compare them against each other but to fully exploit Comparo’s features, we would recommend you download the 1.2GB truck racing example too.


HDX2 Recovery Image File (SERIAL 11xxx Only)

This is the latest HDX2 Recovery Image File for units with serial numbers that begin 11xxx. Do not use this file if your serial number begins 10xxx.

Only attempt to recover your HDX2 system using a Recovery Image File if you are having trouble with your system or have been advised to by Race-Keeper technical support.

3.8.0

HDX2 Serial 11xxx

360mb

This file is a disk image that will return your HDX2 system to a stable firmware version. You will need to burn this image onto an SD card using Win32DiskImager software, which is downloadable here: Win 32 Disk Imager



How to make an HDX2 Recovery SD Card:

1. Download the HDX2 Recovery Image File and Win32 Disk Imager software.

2. Install Win32DiskImager, then launch it

3. Unzip HDX2 Recovery Image File

4. Insert an SD Card (>1GB) and select this in the software under “Device”

5. Select the HDX2 Recovery Image File in the software under “Image File”

6. Click “Write” to starting write the image to SD Card

7. Click OK on the next popup message

8. When done you will see a message saying “Write Complete”



How to use a HDX2 Recovery SD Card

1. Insert HDX2 Recovery SD Card into HDX2 then apply power. The system will scroll the “Memory Used” lights continuously.

2. Wait until the system shuts down (approx 3mins).When shutdown, only a red “Power” light will be illuminated.

3. Remove HDX2 Recovery SD Card and power HDX2 system back on

4. Perform sample recording to a different SD card (you will only be able to record to an HDX2 Recovery SD Card if you reformat it first).

5. Download and place the Latest HDX2 Firmware onto a different/blank SD card and insert into HDX2 when system is fully booted. The orange transfer LED will light for a short period, then the box will be fully operational.

THIS RECOVERY IMAGE IS FOR HDX2 SYSTEMS WITH SERIAL NUMBERS STARTING 11xxx. IF YOUR HDX2 SERIAL NUMBER BEGINS 10xxx PLEASE CONTACT RACE-KEEPER TECHNICAL SUPPORT


HDX2 Box Firmware (SERIAL 10xxx ONLY)

This is the latest HDX2 Box Firmware for units with serial numbers that begin 10xxx. Do not use this file if your serial number begins 11xxx.

Only attempt to update your HDX2 firmware if you are having trouble with your system or have been advised to by Race-Keeper technical support.

1.9.513

HDX2 Serial 10xxx

6mb

1. Download the file & save to SD card

2. Insert SD card into HDX2 box & apply power

3. Wait for 3mins (box will restart a couple of times and the orange transfer LED will light up)

4. Perform sample recording

THIS UPDATE IS FOR HDX2 SYSTEMS WITH SERIAL NUMBERS STARTING 10xxx. IF YOUR HDX2 SERIAL NUMBER BEGINS 11xxx PLEASE CONTACT RACE-KEEPER TECHNICAL SUPPORT


HDX2 Recovery Image File (SERIAL 10xxx Only)

This is the latest HDX2 Recovery Image File for units with serial numbers that begin 10xxx. Do not use this file if your serial number begins 11xxx.

Only attempt to recover your HDX2 system using a Recovery Image File if you are having trouble with your system or have been advised to by Race-Keeper technical support.

1.8.511

HDX2 Serial 10xxx

1GB

This 1GB file is a disk image that will return your HDX2 system to a stable firmware version. You will need to burn this image onto an SD card using Win32DiskImager software, which is downloadable here: Win 32 Disk Imager



How to make an HDX2 Recovery SD Card:

1. Download the HDX2 Recovery Image File and Win32 Disk Imager software.

2. Install Win32DiskImager, then launch it

3. Insert an SD Card (>1GB) and select this in the software under “Device”

4. Select the HDX2 Recovery Image File in the software under “Image File”

5. Click “Write” to starting write the image to SD Card

6. Click OK on the next popup message

7. When done you will see a message saying “Write Complete”



How to use a HDX2 Recovery SD Card

1. Insert HDX2 Recovery SD Card into HDX2 then apply power. The system will scroll the “Memory Used” lights continuously.

2. Wait until the system shuts down (approx 3mins).When shutdown, only a red “Power” light will be illuminated.

3. Remove HDX2 Recovery SD Card and power HDX2 system back on

4. Perform sample recording to a different SD card (you will only be able to record to an HDX2 Recovery SD Card if you reformat it first).

5. Download and place the Latest HDX2 Firmware onto a different/blank SD card and insert into HDX2 when system is fully booted. The orange transfer LED will light for a short period, then the box will be fully operational.

THIS RECOVERY IMAGE IS FOR HDX2 SYSTEMS WITH SERIAL NUMBERS STARTING 10xxx. IF YOUR HDX2 SERIAL NUMBER BEGINS 11xxx PLEASE CONTACT RACE-KEEPER TECHNICAL SUPPORT


Accelerometer Calibration File

This file allows you to zero the accelerometers in your Race-Keeper system following install, so that the G Force values that appear in Comparo HD when you play back your video and data are correct. This file can be used on all HDX2, HE and Black systems.

v1.0

HDX2, HE & Black

1kb

To apply, simply download the file, unzip the “trivinci.id file” and save it to a blank SD card before inserting this into a powered Race-Keeper system box. The orange “Transfer” LED will start to flash. After about 10 flashes, the card is safe to be removed and the file should then be deleted from the card before it is used to make any recordings. You should then hold down the power button on your box to shut it down, before pushing it again to restart it.

You will only need to zero your accelerometers if you reposition the box within the car and it’s mounting orientation is not flat.


HE/Black Firmware

This is the latest HE/Black Box Firmware. Please only update your HE/Black firmware if you are having trouble with your system or have been advised to by Race-Keeper technical support.

v2.8.0.81

HE/Black

4.6mb

1. Download and unzip the file “rkfw-2.8.0.81.rku” & save this to a SD card

2. Insert SD card into box & apply power

3. Wait for 3mins (box will restart a couple of times and the orange transfer LED will light up)

4. Perform sample recording


HE/Black iDash Configuration File

Once you have purchased and applied your iDash licence onto your HE/Black system, you will need to apply this configuration file to ensure the Unbreakable Wi-Fi device has the correct IP address.

v1.0

HE/Black

1kb

1. Download and unzip the “capture.cfg” HE/Black iDash Configuration File, then place it onto an SD card

2. Insert SD card into booted box

3. Orange transfer LED will light briefly and then go out

4. iDash system is ready to use
