Race-Keeper Connect 1080p HD Video-Logger


SKU: RKC-KIT1 Category: Tags: , , ,

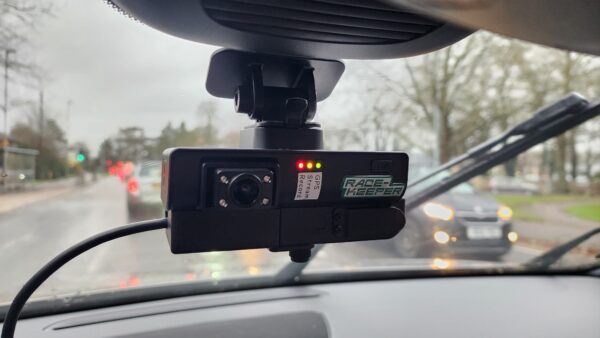

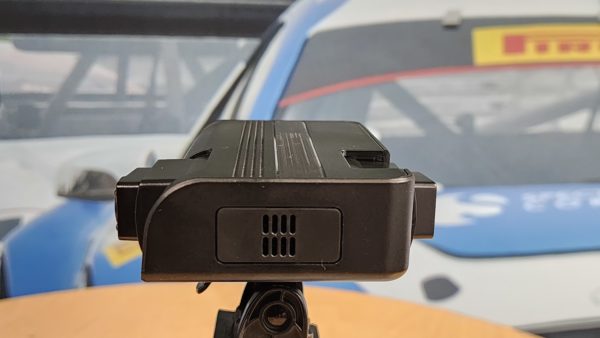

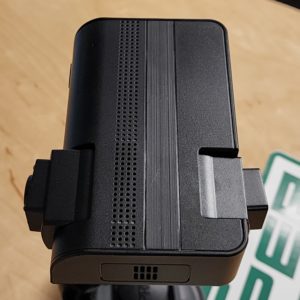

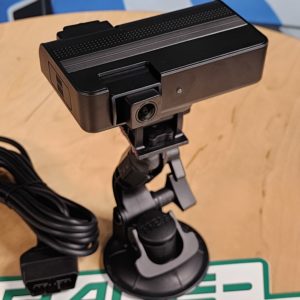

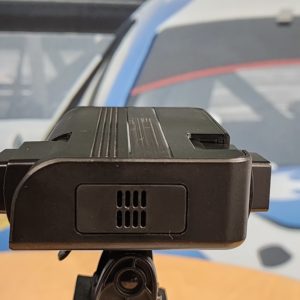

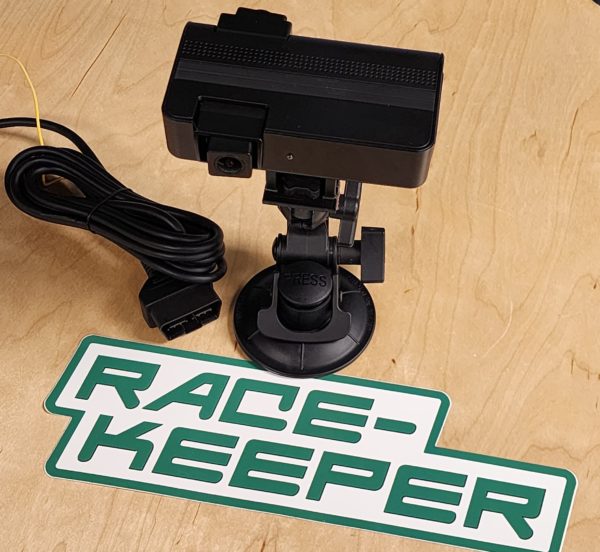

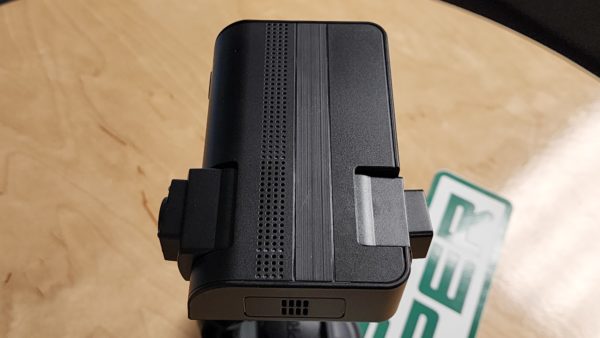

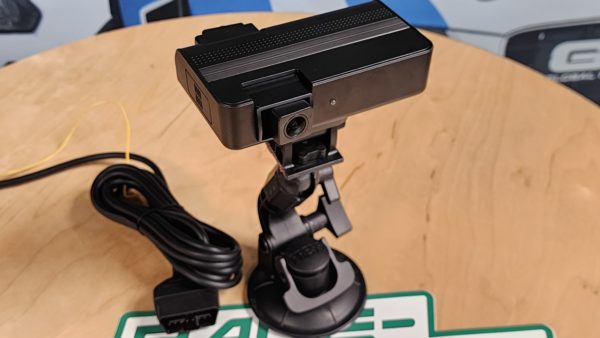

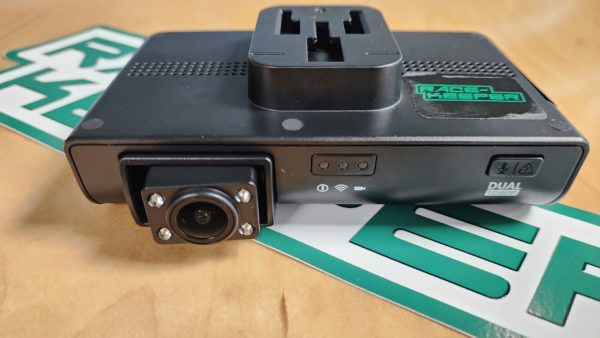

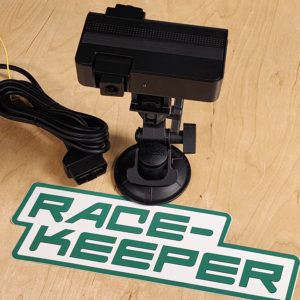

The Race-Keeper Connect video data logger is the next-generation of on-board camera systems from Trivinci Systems LLC, designed for the most demanding racing applications. Its compact design features a dual-camera system with OBDII data logging, CAN data bus connectivity, high-accuracy GPS, and a built-in 4G modem for live streaming and fleet management.

Whether you’re a professional racer, a Club racer or a serious enthusiast who tracks their daily driver, the Race-Keeper Connect will help you improve your performance and reduce your lap times. With its advanced features and intuitive operation, it’s the perfect tool for capturing and analyzing your data.

For driving experience operators, the Race-Keeper Connect will provide the next level of video and data capture for your higher-end driving experiences where your guests come to learn new skills and analyze their track performance with your professional driving coaches.

Here are just a few of the things you can do with the new Race-Keeper Connect:

* Analyze and compare your lap and split times, driver inputs and engine data in our Race-Keeper Comparo video data analysis application
* Capture data from your vehicles’ ECU over CAN connection
* Live stream your races to fans and sponsors right from the Race-Keeper Connect – no additional hardware required
* Share your data with your team for feedback and collaboration

The Race-Keeper Connect is the perfect tool for anyone who wants to take their racing to the next level.

Most professionally built race cars have custom ECU’s or Dash Displays that are capable to supplying the data it captures to additional devices using CAN communication, meaning you will not need to double up on sensors in order to measure the same parameters. The additional driver data channels you would want to capture via CAN would include:

  • Speed
  • RPM
  • Throttle
  • Steering Angle
  • Gear Position
  • Brake Pressure

Race-Keeper Connect is CAN enabled as standard and will support connection to a number of standard ECU’s using your DBC file to define what messages and CAN channels the Race-Keeper will capture. You simply import your .dbc file straight into Comparo HD for use with the Race-Keeper Connect.

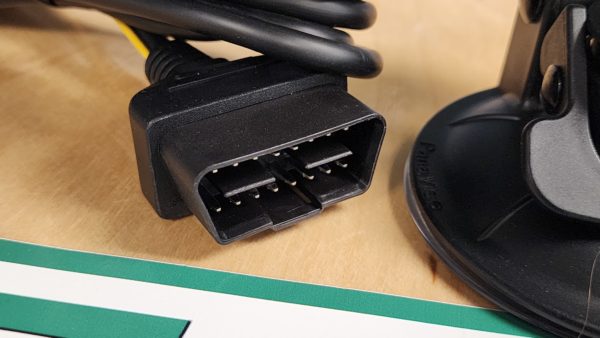

The ECU’s on all modern road cars, and therefore some racing cars, transmit signals using the “On-Board Diagnostics” communication standard OBDII. By connecting your Race-Keeper Connect to the OBDII on your car, you will gain some data channels in addition to those from GPS and the built-in accelerometers, the main ones being Speed, Throttle and RPM.

These additional data channels will allow you to further analyze your on-track performance and see where improvements can be made.

Additional information

Weight 1 lbs
Dimensions 5 × 3 × 1 in
Power Cable

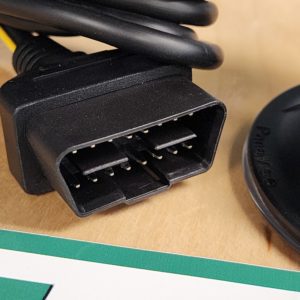

Unterminated, Cigarette Adaptor, OBDII connector

We know that your time on track is limited, but so is the time available between sessions, during which you have to review your video/data, along with a whole host of other things. That is why we have made our video data analysis software so simple to use.

Although we believe Comparo HD is the simplest video data logging software on the market, to some we appreciate it may appear daunting at first glance, due to all the text, graphs and buttons. That is why we actively encourage you to download a copy of Comparo HD for free, along with some sample video/data and have a go at comparing laps and analysing data for yourself.

Comparo HD is Race-Keepers video data analysis software which plays synchronized video alongside course map and data traces, including speed, lap number, lap time, G forces, as well as any other data streams available via OBD-II, ECU/CAN or from Analog/Digital sensors.

It presents all of this information in a single, combined view so that you can instantly start analyzing your ontrack performance straight away. Data and video is automatically syncronized so there is no unnecessary setup or configuring that is required before you can playback your outing.
